This is my review of the portable Bluetti 200W Solar Panel, an innovative and eco-friendly power solution that has been making waves in the renewable energy industry.
As more people become increasingly aware of the importance of sustainable energy sources, Bluetti’s 200W Solar Panel has emerged as a front-runner, providing portable and reliable green power for various applications.
My review will delve into the features of this solar panel by Bluetti, including build quality and performance. It will also evaluate its real-world usability and offer valuable insights to help you decide if it’s the right choice for your solar needs.
Full disclosure: we were gifted this Bluetti PV200 solar panel to test and review. However, our thoughts and honest opinions are our own.
Bluetti 200W Solar Panel Build Quality
I found the quality of the materials used for the Bluetti PV200 solar panel is top-notch. The panel is highly durable and water resistant, making it an ideal choice for various outdoor applications. It features high-efficiency Mono-crystalline silicon cells, which effectively absorb the sun’s energy and convert it into electricity.
However, after unboxing the panel and opening and closing it, the next time I picked up the closed panel, the handle came loose. The handle is in 2 parts and is screwed together. It appeared that the screws holding the 2-part handle together weren’t long enough to keep the handle together.
Not knowing if this was a transportation or design fault, I contacted Bluetti to advise of the broken handle. They reported that they had reported it to the factory, and it was an issue with that particular batch of panels. The problem is now rectified through quality control.

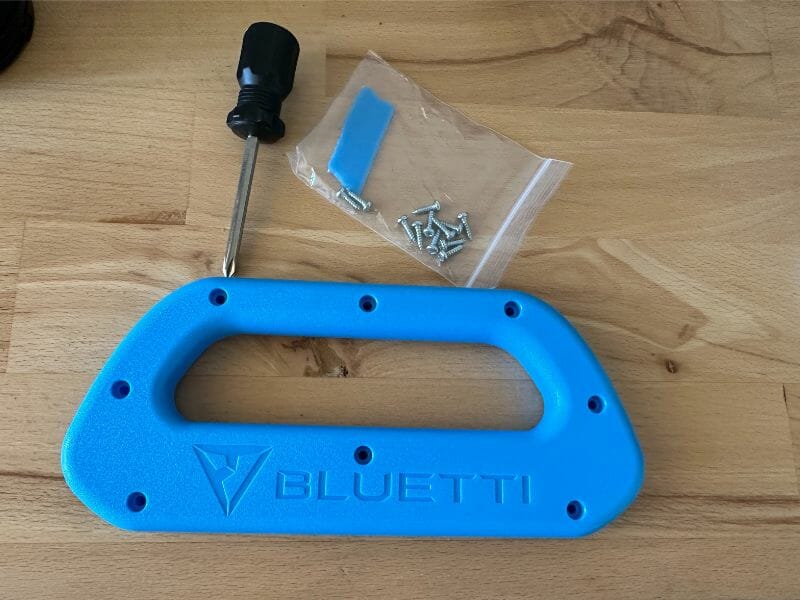

The broken handle was replaced, and the new handle, screws and even a small screwdriver were sent out in the post within a few days. The small handle issue did not affect the panel’s performance and only slightly affected the portability.
Features Of The Bluetti 200w Portable Solar Panel
I noticed it felt a little heavy when unpacking the Bluetti 200 watt solar panel. However, given the amount of wattage of this 200w solar panel, it is on the lighter side of solar panels, as we found in our comparisons in the best solar panel for Camping guide to find the best camping solar panel.

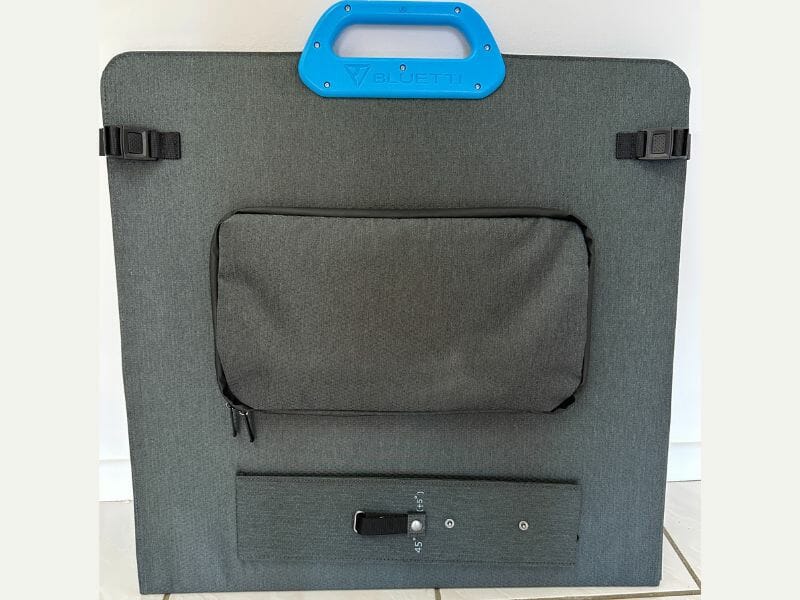

It has a handle for easy portability and two press-open straps that keep the four panels together for transportation.

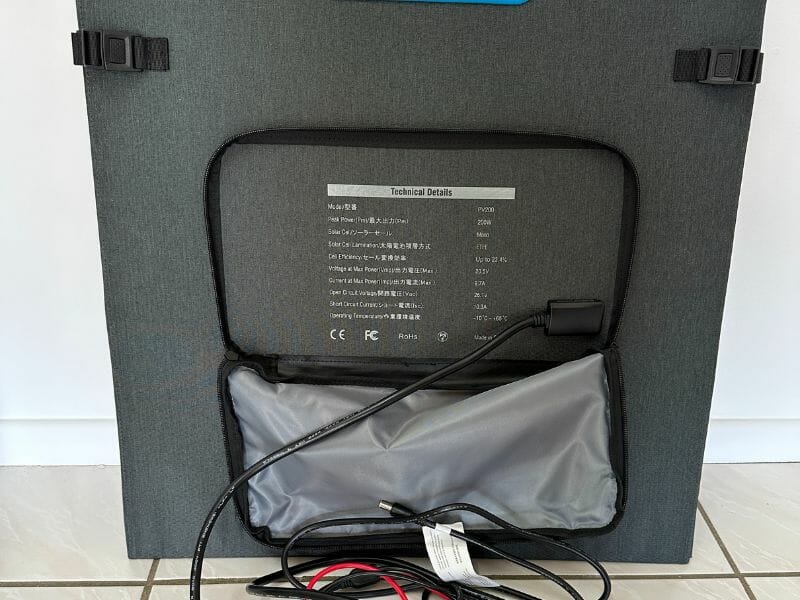

On the front panel, a large zippered pocket houses the wiring needed to connect to the item charging. I like that it has all the relevant and important information about the solar panel stamped onto the inside of the pocket. Information including the maximum voltage and current. Plus, the open circuit voltage and the operating temperature guidelines.
Four well-designed, adjustable legs allow you to take advantage of the sun no matter the angle or time of day. The legs are adjustable from 5 degrees to 45 degrees.
Specifications
Following are the important specifications for the Bluetti PV200 200w solar panel. We’ve divided them into two sections, one for power and the other for general specifications.
| Power | Specs | General | Specs |
|---|---|---|---|
| Power | 200W | Weight | 7.3 kgs |
| Cell Efficiency | Up to 23.4% | Unfolded Dimensions | 59 × 226.5cm |
| Cell Type | Monocrystalline Silicon | Folded Dimensions | 59 × 60cm |
| OCV – Open Circuit Voltage | 26.1 Volts | Connector | Standard MC4 Connector |
| ISC – Short Circuit Current | 10.3 Amps | Operating Temperatures | -10-65℃ |
| VMP – Voltage at Max Power | 20.5 Volts | Optimal Temperature | 25℃ |
| IMP – Current at Max Power | 9.7 Amps | Length Of Cable | 118in (3m) |
| Warranty | 2 years |
Performance
I used the solar panel in the following ways.
Charging The Bluetti EB3A PowerStation

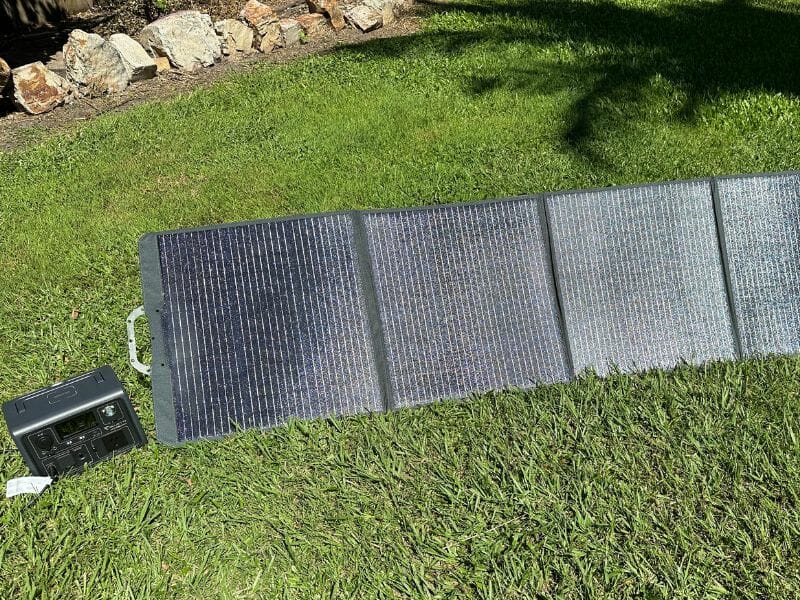

When I plugged the Bluetti solar panel into the power station the EB3A had zero power. I found the panel easy to assemble and plug into the power station.
Within 2 hours, the EB3A was fully charged and ready to use. The maximum input I recorded was 144 watts going into the power station. Now, I didn’t stand by for 2 hours watching the input. However, I checked it a few times, and the charging rates were above 100 watts.
Charging The Y62 Patrol Battery
We have 2 x DSC batteries in our Nissan Y62 Patrol. For some reason (at the time of writing we don’t know why) twice we have gone to start the car and have had flat batteries.
After we had purchased a jump starter, we found the small charge that the jump starter had out of the box wasn’t enough to jump-start the car. After a quick phone call to RACQ (we are in their Ultimate cover), the mechanic had it started on the first attempt.
He advised leaving the car running for half an hour to charge the battery. We went for a drive instead, and when we returned, we set up the solar panel to top up the battery, which was only at around 49%.
While charging the battery, we popped into Jarcar and picked up an adaptor lead to connect the solar panel to the car’s Anderson plug.
The adapter cost was $25 from Jaycar.
However, we don’t know why no solar was going into the car battery at this stage.
Again, at the time of writing, we are still investigating why this is a problem. Clearly, the Anderson plug on our car works as it charges the batteries in our caravan. Once we have this problem sorted, we will update this post with why there was no charge to the batteries.
What we do know, though, is that it is not the Bluetti solar panel at fault.
The battery system in our car appears to be the problem, as it should have cut off whatever is draining it to preserve the battery. This is because the power runs to the rear through a low voltage cut-off switch, which, once down to 20% remaining, cuts off the loads from the batteries and still allows us to start our car.
Clearly, it didn’t do this!
Our Patrol has direct alternator charging. Straight from the alternator, directly into the batteries.
Adding Extra Solar To Our Caravan

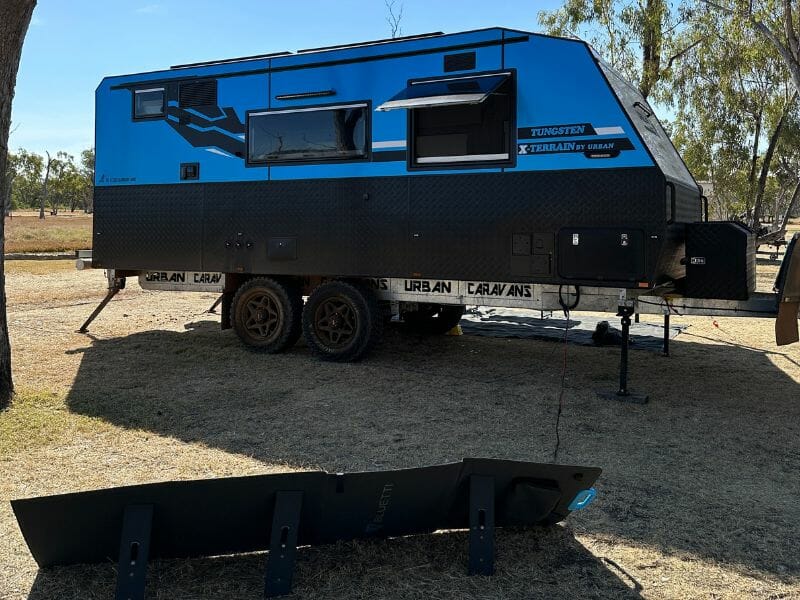

We carried the Bluetti 200w solar panel with us on our travels to help with the low sunshine days on the road, especially in the winter when the sun sits lower in the sky. We used the Bluetti portable solar panels to top up solar when camping off-grid to help top up and charge the batteries.
Testing solar panels require two things. It has a low battery and plenty of sunshine. We first tested the solar panel staying at Lara Wetlands, which definitely made a difference in topping up our batteries. Lara has many trees, and we also had some cloudy days, so the solar panel came in very handy.
Fun Facts About The Bluetti Company…
Let me introduce you to the Bluetti company and their ethos.
Since 2020, BLUETTI has been on a mission to make the world a better place. Through its LAAF (Lighting An African Family) project in Kenya, Africa, it gives lights and power generators to families without electricity or strings attached—making energy independence possible for those who need it most!
This fantastic initiative has been successful not only because of its leading-edge technology but also due to innovation awards won alongside being featured in top publications and channels around the globe. In doing so, they are paving new paths towards building a brighter future – one powered by clean, renewable sources that benefit all humankind. We think that is pretty cool!
Wrap Up
We hope you have found my review of the Bluetti 200w solar panel useful for deciding to purchase Bluetti products. We have found Bluetti products to be of a very high standard and top quality.
